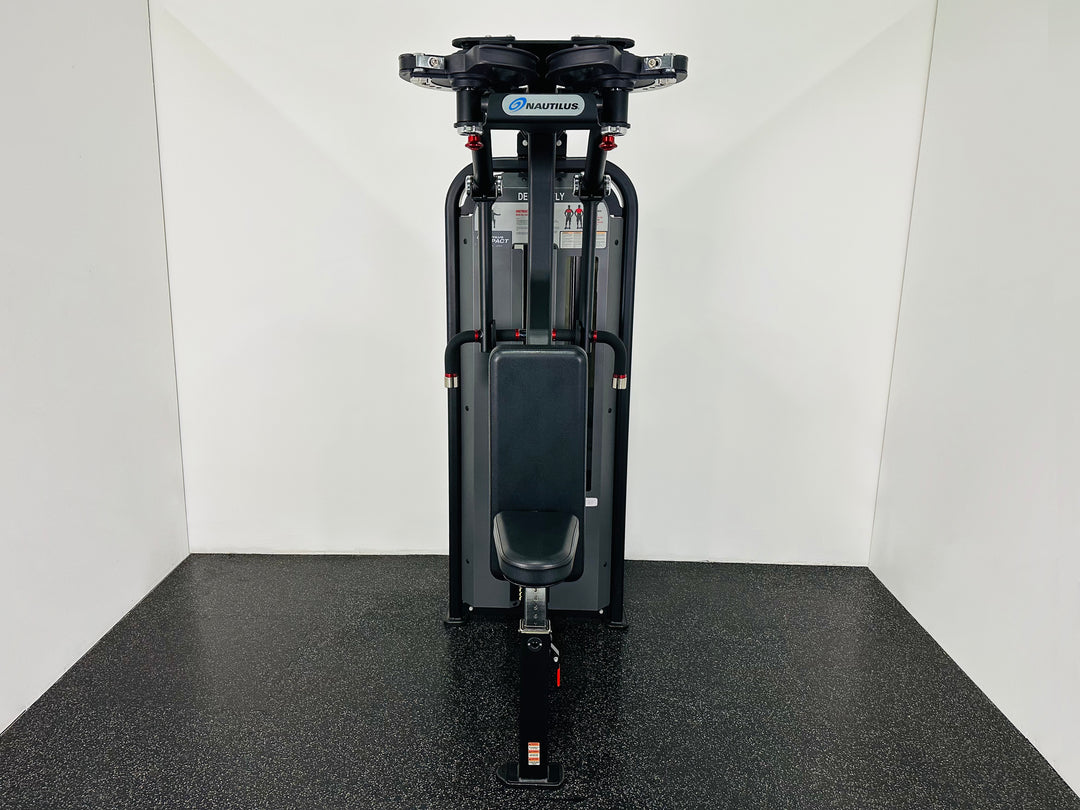

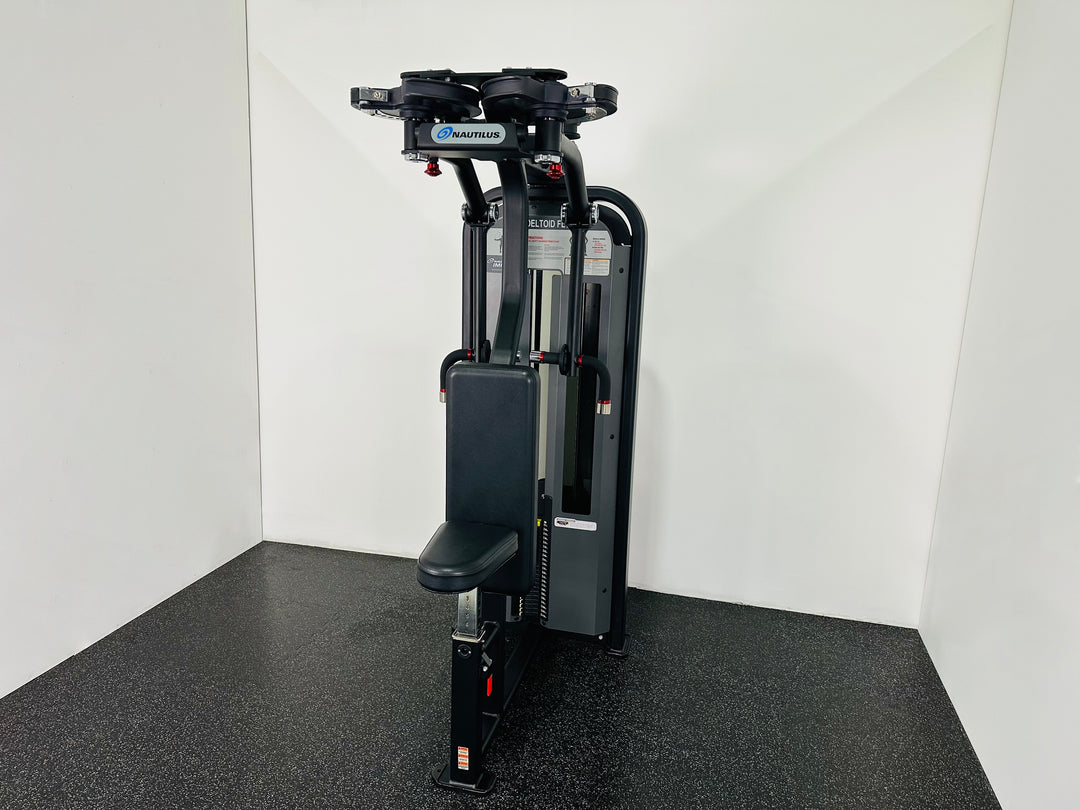

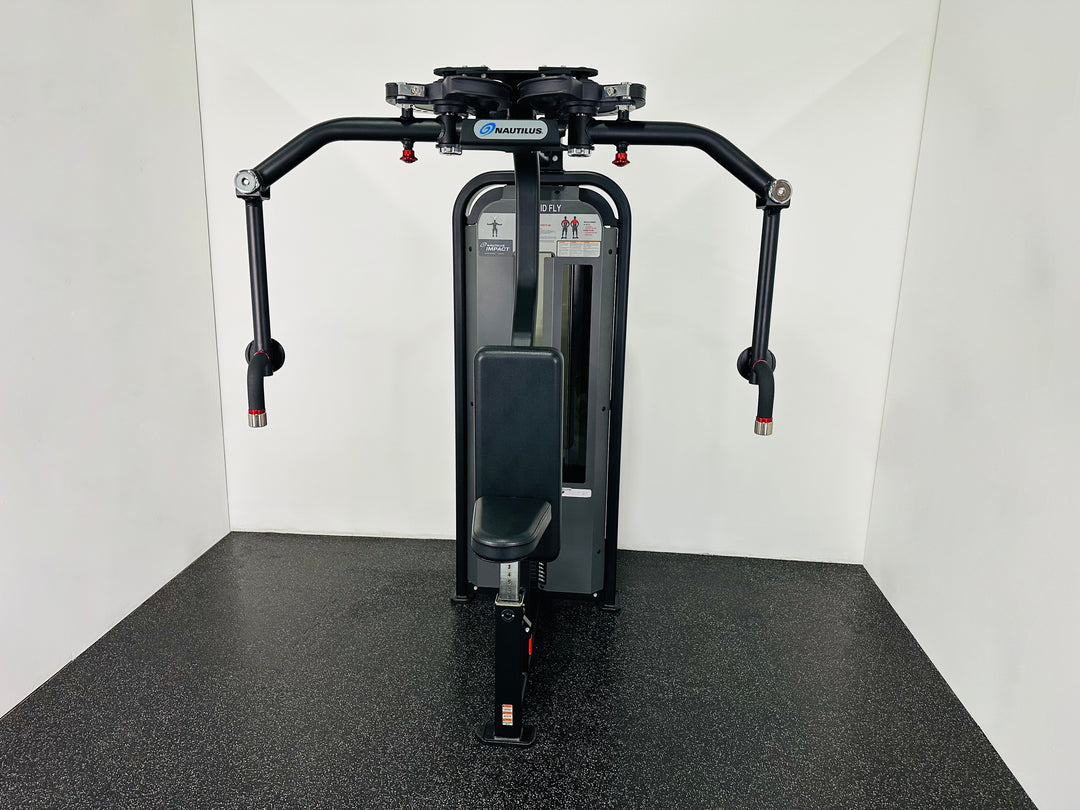

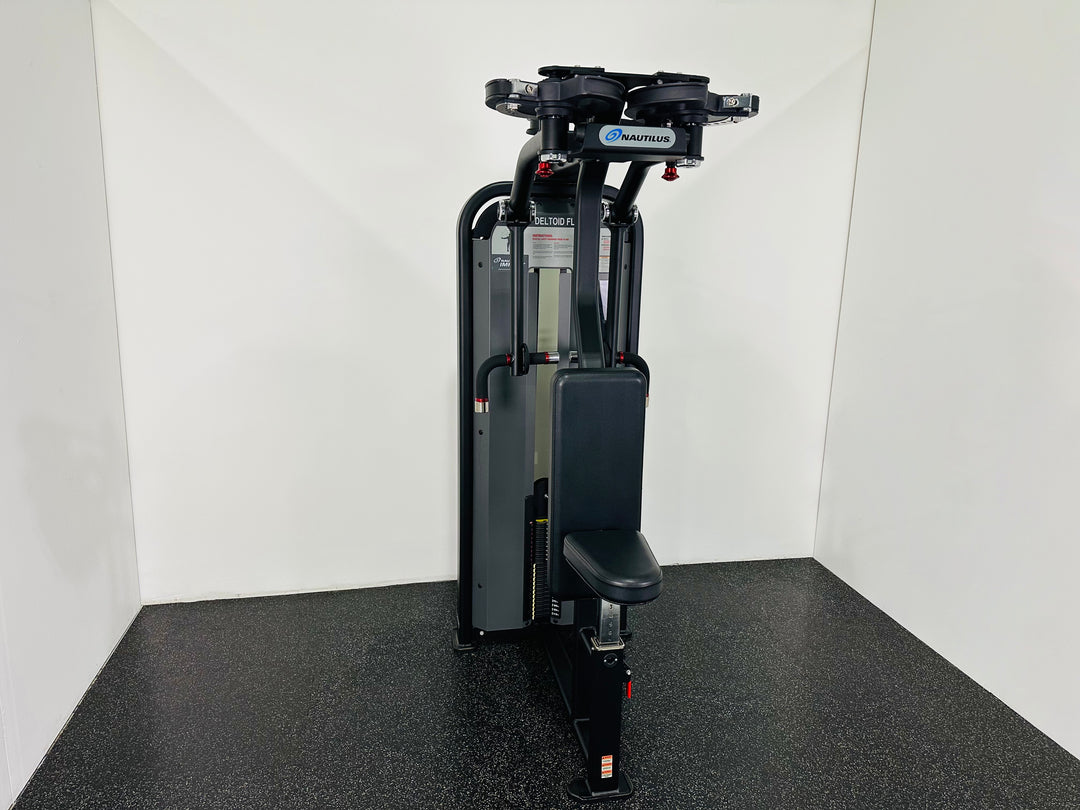

Nautilus Impact Deltoid Fly

The Nautilus Impact® Deltoid Fly is a commercial selectorized strength machine engineered to isolate and develop the shoulder muscles with controlled, consistent biomechanics. Designed for professional fitness environments, it delivers focused deltoid training while supporting proper posture and joint alignment throughout the movement.

The machine operates on a guided, fixed motion path, helping users maintain correct form during fly and reverse-fly style movements. Pre-stretch positioning and assisted start mechanics simplify setup and improve comfort, making the unit accessible to users across a wide range of experience levels.

A selectorized resistance system with 5-lb incremental adjustments allows for precise progression, while gravity-assisted positioning and a ratcheting seat adjustment enable fast, secure setup in busy gym settings. Depending on configuration, the unit supports unilateral or bilateral movement and converging or diverging arm paths, offering programming flexibility without compromising consistency.

Built on the Impact® Strength platform, the Deltoid Fly combines durable construction, intuitive adjustments, and refined ergonomics, making it a reliable choice for gyms, training centers, and rehabilitation-aware facilities seeking dependable shoulder isolation equipment.

Features

Core Functionality

• Selectorized resistance system for quick, controlled load changes

• 5 lb incremental plates for precise strength progression

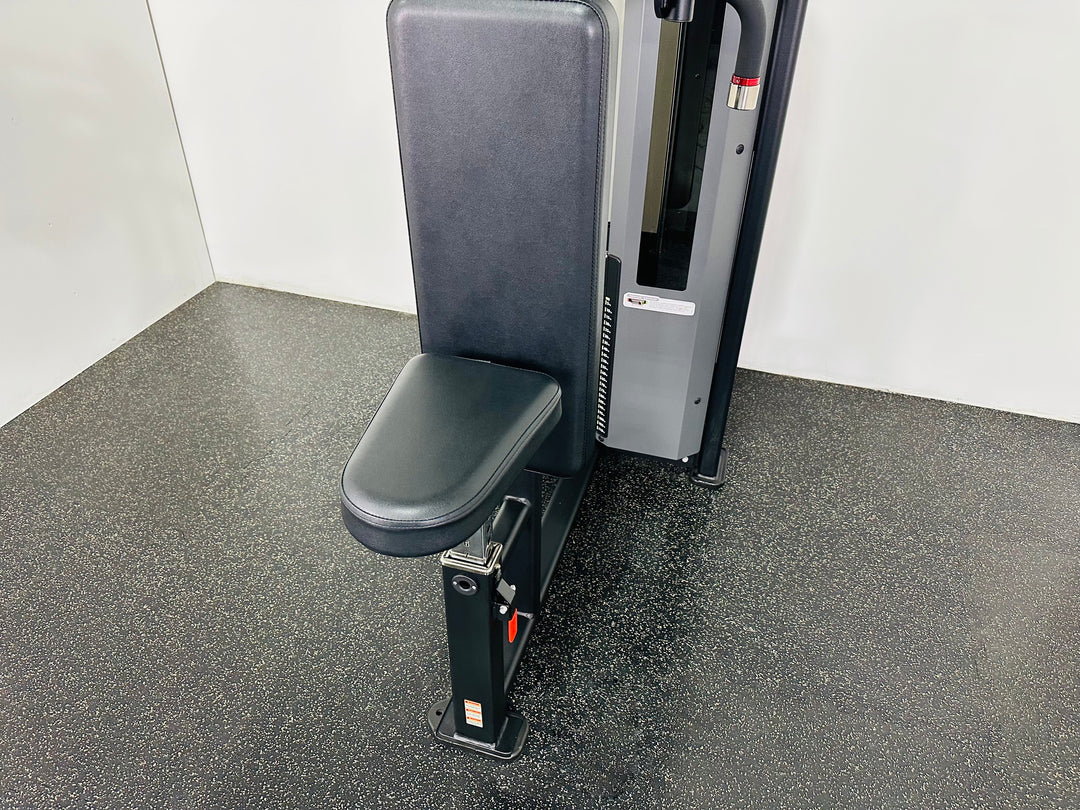

• Ratcheting seat adjustment for secure user positioning

• Gravity-assisted setup for smooth entry and exit

• Patented Lock N Load® weight selection system

Adjustments & Movement

• Fixed movement path for consistent shoulder isolation

• Gravity-assisted positioning with adjustable seat and “easy-up” ratcheting system (SKU dependent)

• Color-coded pivot points and adjustment markers

• Unilateral or bilateral movement capability (unit dependent)

• Converging or diverging arm paths depending on configuration

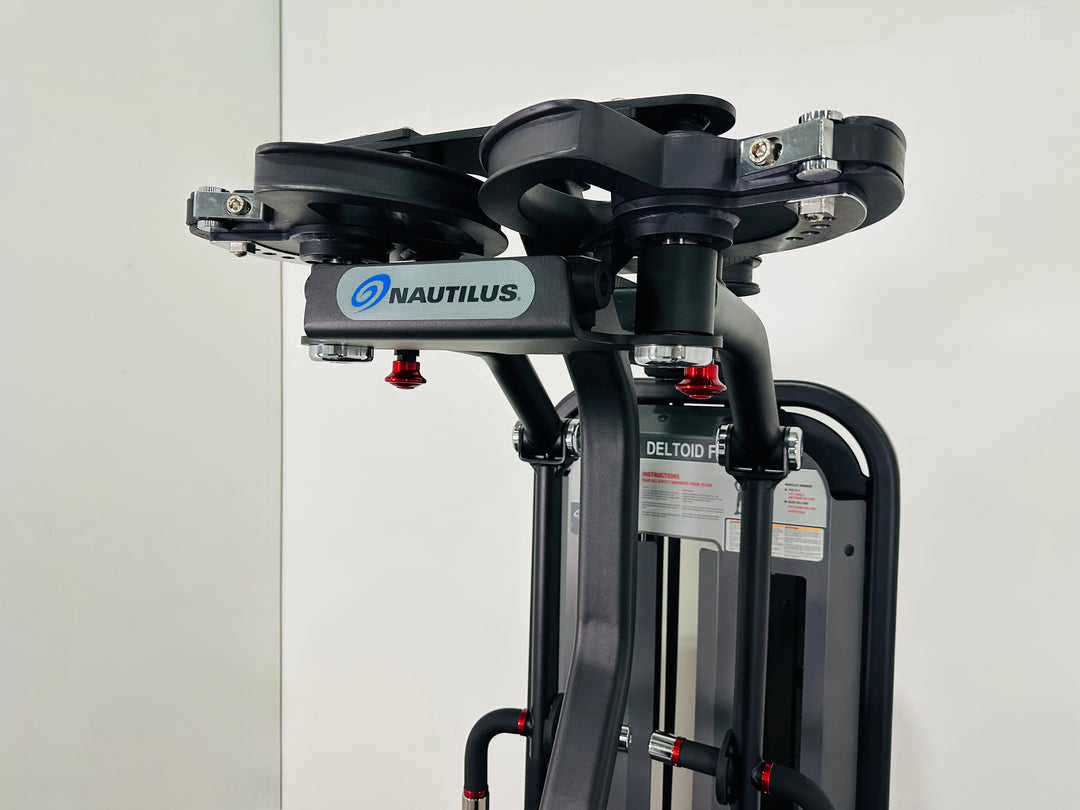

• Pulley ratio: 1.1 for smooth resistance delivery

Frame & Construction

• Standard frame color: Black

• Standard upholstery color: Black

• Electrostatic powder-coated steel frame for durability

• Optional custom paint, upholstery, and branding (additional cost and lead time)

• Cable- or belt-driven transmission depending on SKU

• Defined bolt-down locations

• Rubber feet for floor protection (no integrated leveling system)

• Hex and button-head hardware

• Modern blend of square and round steel tubing, primarily 3 mm or 2.5 mm (11-gauge)

• Typical unit height around 60 inches (varies by model)

User-Focused Details

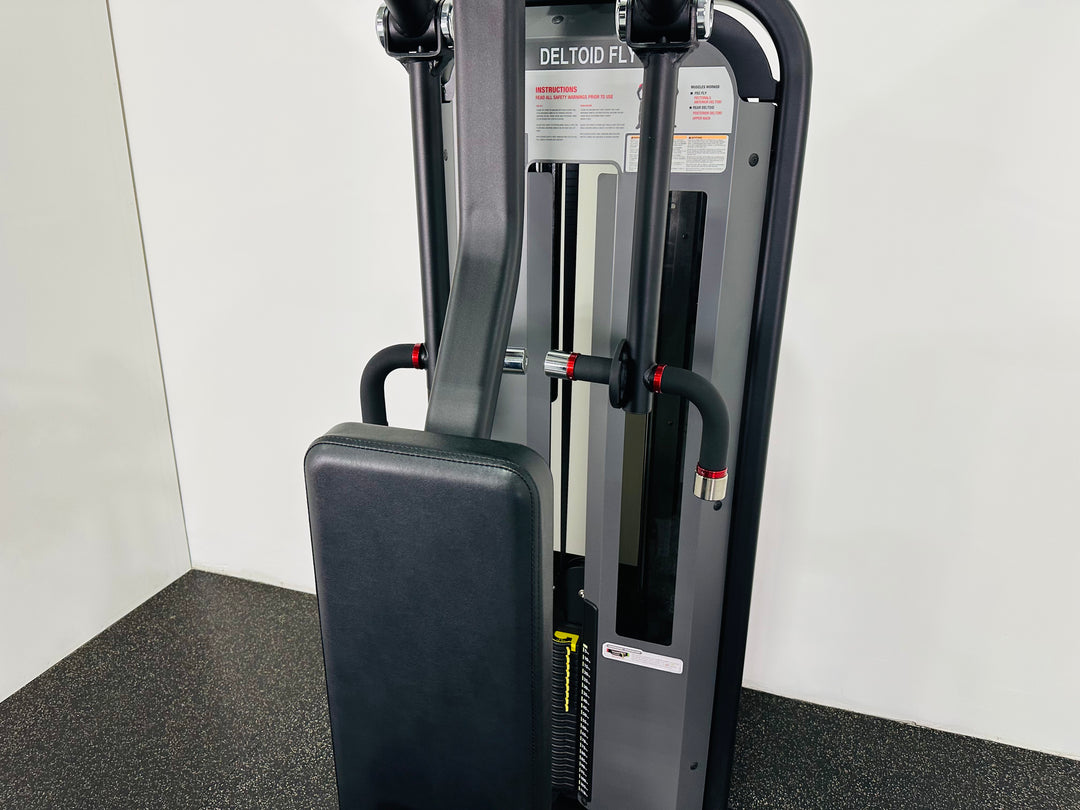

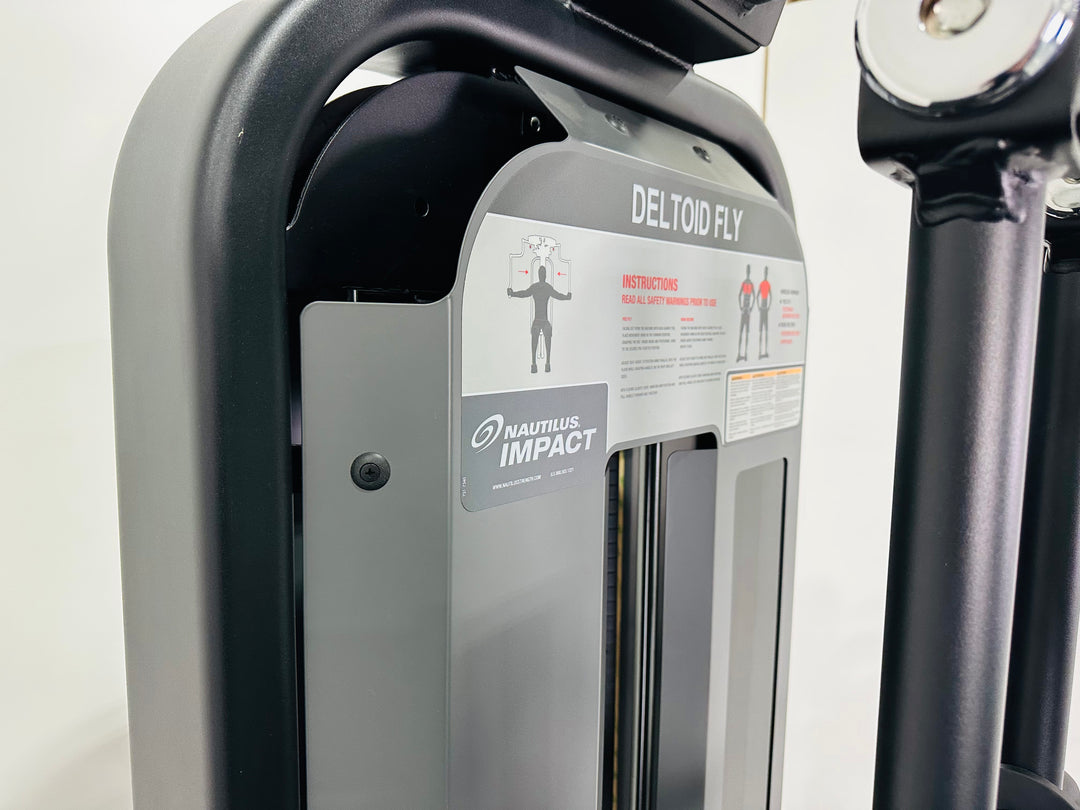

• Static, easy-to-read instructional placards

• Multi-language placard options available

• Integrated safety catches and stops on select SKUs

• Rubber grips sized for pushing and pulling actions

• Foot platform configuration dependent on model

• Contoured back pads on select versions

• No water bottle holder, phone holder, or restraint system

Technical Specifications

Machine Type
Selectorized Deltoid Fly / Shoulder Isolation Machine

Overall Dimensions (L × W × H)
50 in × 30 in × 79 in
(127 cm × 76 cm × 201 cm)

Overall Machine Weight
580 lb / 263 kg

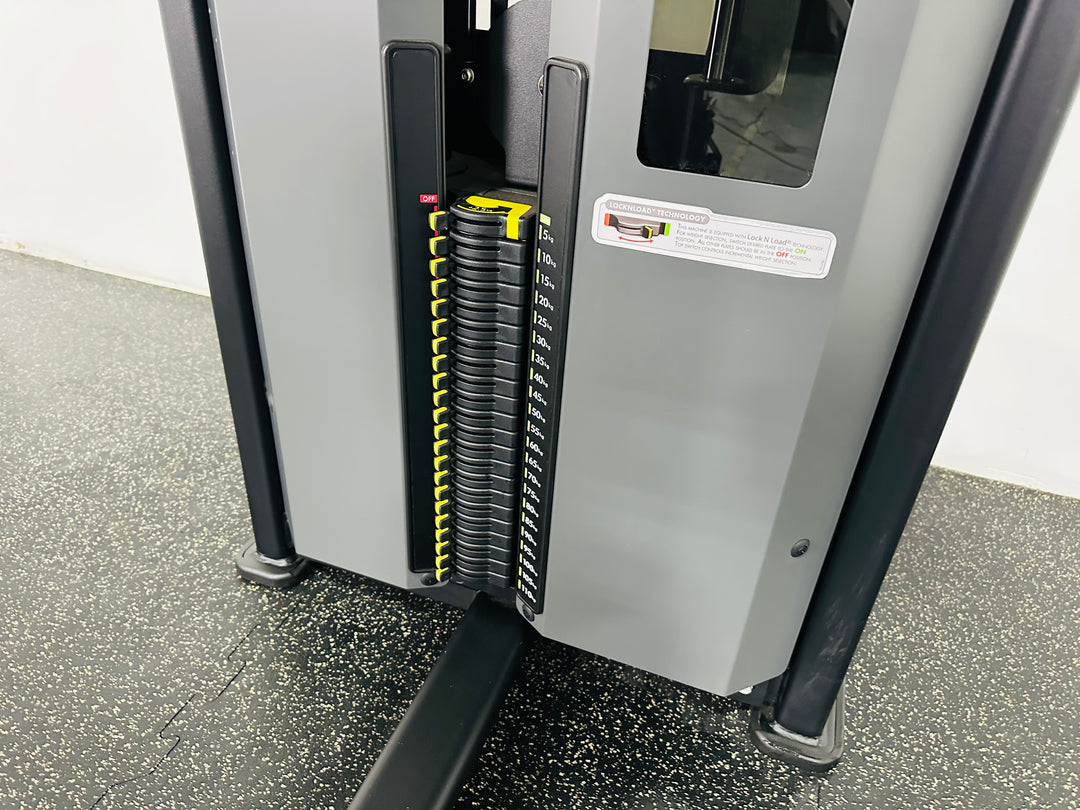

Weight Stack

• Stack Weight: 220 lb / 110 kg

• Increment System: 5 lb plates for controlled progression

• Total Stack Weight: Machine dependent

• Weight Stack Tower Height: Machine dependent
